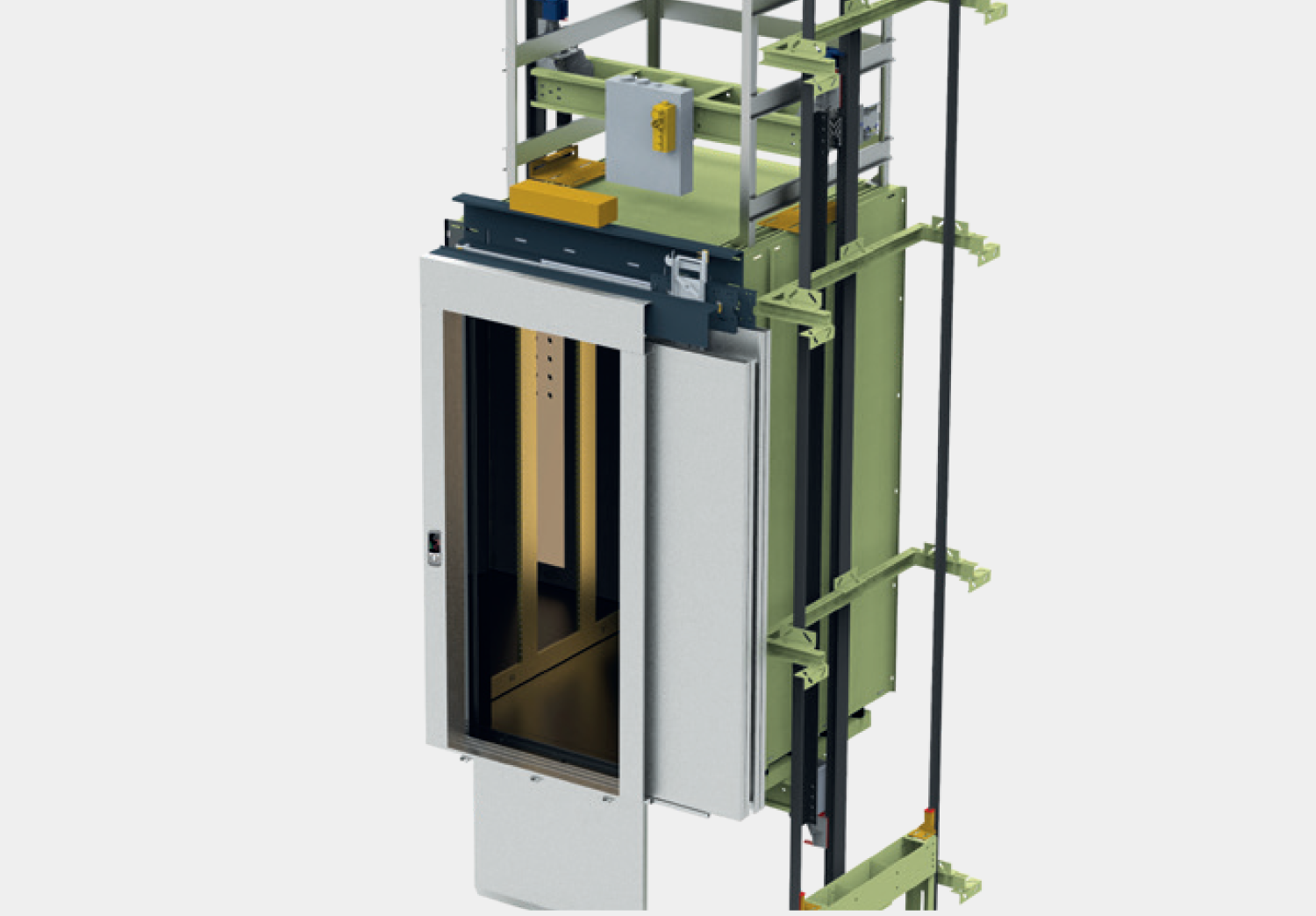

It is a system with a traditional machine room. With this system, kepi elevator offers low price and high quality.
| CAPASITY (kg) | 320 | 400 | 480 | 630 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3000 | 3500 |
| PERSON | 4 | 5 | 6 | 8 | 10 | 13 | 17 | 21 | 27 | 33 | 40 | 47 |
| SPEED (m/sec) | 0,50 | 2,50 | 0,50 | 1,60 | 0,50 | 1,00 | ||||||
| PERSON | • | • | • | • | • | • | • | |||||
| HOSPITAL | • | • | • | • | • | • | ||||||
| LOAD AND CARGO | • | • | • | • | • | • | • | |||||
| DOOR ENTRY (mm) | 700 - 1300 | 1100 - 3500 | ||||||||||
| DOOR HEIGHT (mm) | 2000-2300 | 2000 - 3500 | ||||||||||
| CAR INSIDE HEIGHT (mm) | 2000 - 2600 | 2000 - 3800 | ||||||||||
| MAX. CAR AREA (m²) | 0,9 1,17 1,3 1,66 2 2,4 | 2,95 3,56 4,2 5 5,8 6,6 | ||||||||||
| MAX. STOPS | 30 | 18 | ||||||||||
| MAX. TRAVEL DISTANCE (m) | 100 | 60 | ||||||||||
| TRACTION SYSTEM | GEARED MACHINE VVVF 1:2 OR 1:1 | |||||||||||
| RAILS | T50A - T70A - T75B - T89B - T90B - T125B - T127B | |||||||||||
| CONTROL PANEL | ARKEL ARCODE - ARL 300 | |||||||||||
| STANDARDS | EN 81-1, EN 81-1+A3, EN 81-20/50-70 | |||||||||||
| CAR MODELS AND PROPERTIES | OPTIONAL MODELS FROM CATALOG | OTTOWA (PAINTED) OR MARAKESH (STAINLESS STEEL) | ||||||||||
